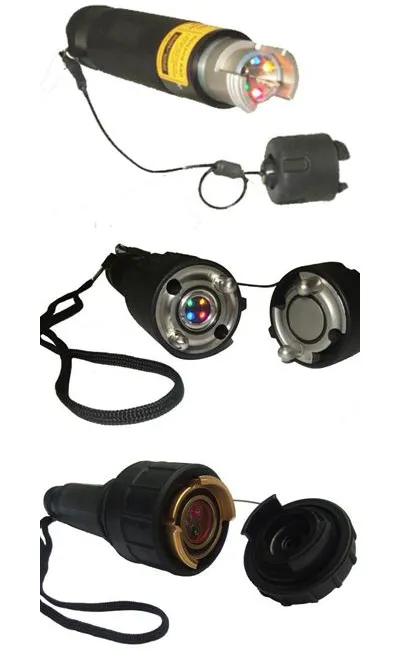

Tester for military lens connectors - BRUMIL 840

Tester for military lens connectors - BRUMIL 840

The ideally customized Tactical Optical LED-Tester for military lens connectors performs critical tasks for maintaining tactical fiber-optic networks in operations by testing existing cable sets and localizing damages to patch cords, adapting cables etc.

Application:

•Checking/testing tactical fiber-optic networks or part of it,

e.g. cable assemblies with military lens connectors, adapting cables etc.

•Testing of the cable assemblies before and after an operation

•Ensures success of following mission

•Limits faulty connections to a minimum

•Keeps the cable assemblies ready for operation

•Localizing of a faulty fiber-optic cable to replace or to repair immediately with the Emergency Field Repair Kit (BRUMIL 860) or the Tactical Cable Repair Kit (BRUMIL 880)

Advantages of Optical LED-Tester

•Compact and lightweight design

•Simple optical fault locator

•Locating of unwanted fiber crossing

•Simple one-button operation

•High visibility of the color LED light

•Simple handling

•Reliable construction for harsh environment

•Easy cleaning with water and isopropyl alcohol

•Additional LED-Tester with any other connector interface available on request

Construction:

•Hard lightweight metal housing IP 54

•Fully compatible with original lens connector insert

•A1 = red

•B1 = green

•A2 = yellow

•B2 = blue

Optional Accessories and Service offered:

•Textile bag

•Easy cleaning set

•Training for deployment, repair and cable testing in the field and in the workshop

•Emergency Field Repair Kit (BRUMIL 860) for mechanical splice in the field

•Tactical Cable Repair Kit (BRUMIL 880) for fusion splice in the workshop

•Solution engineering and system design

Optical:

•Testing single or multimode fibers

Temperature range:

•Operation:-20º...+50º C

•Storage-20º...+60º C

•Humidity95%, non condensing

Power:

•Batteries:3x LR03-AAA

•Battery life time: up to 5 hours with standard batteries

Dimensions

HMA compatible LED Tester

•Size l x d:157 x 27mm

•Weight:approx. 160 g

TFOCA compatible LED Tester

•Size l x d:170 x 38mm

Weight:approx. 300 g

EUROCOM compatible LED Tester

•Size l x d:185 x 58mm

•Weight:approx. 525 g
