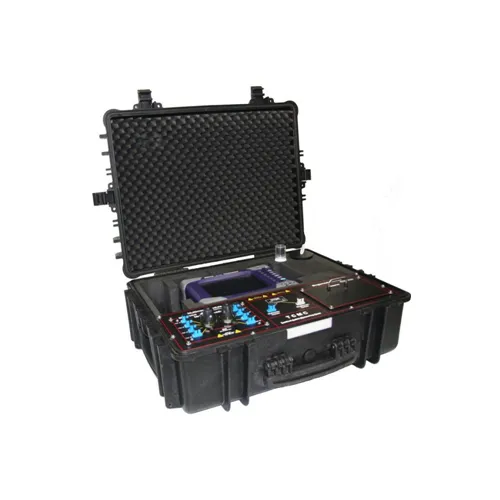

Tactical Cable Measuring Case - BRUMIL 810

Tactical Cable Measuring Case - BRUMIL 810

The ideally customized Tactical Cable Measuring Case performs critical tasks for maintaining tactical fiber- optic networks in operations by testing existing cable sets and localizing damages to patch cords, adapting cables etc.

Application:

•Checking/testing tactical fiber-optic networks or part of it,

e.g. cable assemblies with military lens connectors, adapting cables etc.

•Measurement of the cable assemblies before and after an operation

•ensures to initiate the next mission successful

•limits faulty connections to a minimum

•keeps the cable assemblies ready for operation

•Localizing the failure of a fiber-optic cable to repairing immediately with the Emergency Field Repair Case or the Fusion Splice Case

•An optimum of reliable cable assemblies are available for the next operation

Advantages Optical Time-Domain Reflectometer (OTDR):

•Compact and highly integrated results in lightweight, compact and flexible design

•Simple optical fault locator

•Advanced Optical Time Domain Reflectometer OTDR

•On board “Connection Checker” (optional VFL, power meter, continuous wave light source and video inspection probe, keyboard and mouse)

•Programmable macros for measuring fixed fiber/cable lengths

•Simple one-button operation provides full OTDR functionality

•Internal memory for 1000 test results

•High visibility TFT color display 8.4 “

Construction:

•Hard cover case IP 64

•Compact OTDR measuring device with power cord, USB connection cable, AC/DC power supply

•Connector panel adapted to customer’s requirement and

Application

•Special adapting cables, if needed

•Cleaning cube with 200 tissues

Elix clean with isopropyl alcohol

Optional Accessories and Service offered:

•Training for deployment, repair and cable testing in the field and in the workshop

•Emergency Field Repair Kit for mechanical splice in the field

•Tactical Cable Repair Kit for fusion splice in the workshop

•Solution engineering and system design

Optical:

•Measuring single or multimode fibers

•Wavelengths850, 1310 and 1550 nm

Power Supply for OTDR:

•Input:100-240VAC 50-60 Hz

•Output:19 V DC 3.1 A

•Battery life time: up to 11 hours with standard display

Temperature range:

•Operation:-20º...+50º C

•Storage-20º...+60º C

•Humidity95%, non condensing

Dimensions

•Size l/w/h:650 x 510 x 242 mm

•Weight:approx. 15 kg
