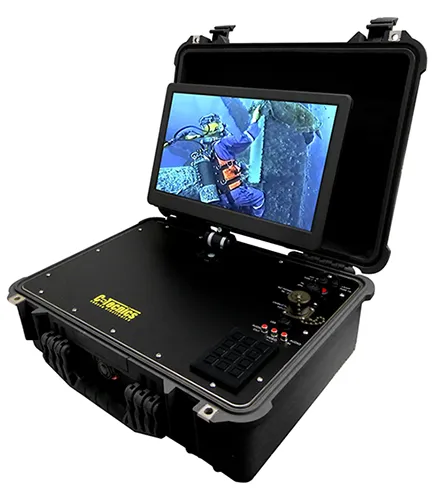

E-Vision HD

An economical and reliable solution for diver video and communications monitoring; the E-Vision HD, available in single channel or 2 channel splitscreen versions, offers high definition diver video recording and playback from the built in 500GB hard disk drive and LED lamp dimming control. The 15'’ integrated foldable LCD monitor provides a crisp clear, anti-glare display during live video and playback, and when used with C-Tecnics CT3026 HD Camera and CT4006 LED Light provides an exceptionally high quality picture. Audio input and pass through allows the user to integrate an external communication system - audio is also recorded in line with the video. Connect up to 200 metres* of C-Tecnics camera and light umbilical. The rugged Peli Case housing ensures the E-Vision HD is suitable for the harshest conditions on any dive site. The E-Vision HD is also available in rack mount format (see E-Vision R) and can be configured for twisted pair type video transmission cameras* (optional). The E-Vision HD is also backwards compatible with analog SD cameras* for standard definition video.

Specifications:

Video:

• Video Input Resolution 1920 x 1080p 30fps

• Supported Input Resolutions 1920 x 1080p 30fps, 1920 x 1080p 25fps, 1280 x 720p 30 fps

• Video Supported Format PAL/NTSC

• Recorded Video Resolution 1920 x 1080p 25fps (matches input)

• Recorded Video Encoding H.264

• Recorded Video Format MP4

• Video Storage 200 hours approximate (internal storage)

Electrical:

• Voltage Input Supply 96-264VAC

• Power Requirement 94 Was

• System Fuse 10A

• Voltage Supply to LED Light 24VDC

• Lamp Fuse 1A

• Voltage Supply to Camera 24VDC

Mechanical:

• Dimensions: (L x W x D) 524 x 428 x 206mm

• Operating Temperature: 0 to 50 C

• Storage Temperature: -10 to 60 C

• Weight: 8 Kg

• Case IP Rating: IP65

• Case Colour: Black

Other functions:

• Snapshot Format JPEG

• USB Interface 2 for external storage or keyboard

• Video Overlay date/me

• up to 5 lines of custom text (external keyboard required)

• Audio Recording RCA input for recording external audio

• Audio Passthrough RCA output for audio input passthrough

• External Video Output RCA for Standard Definition output of live video feed

• Wireless Video Streaming RTSP streaming
