C-Vision Solo

C-Vision Solo

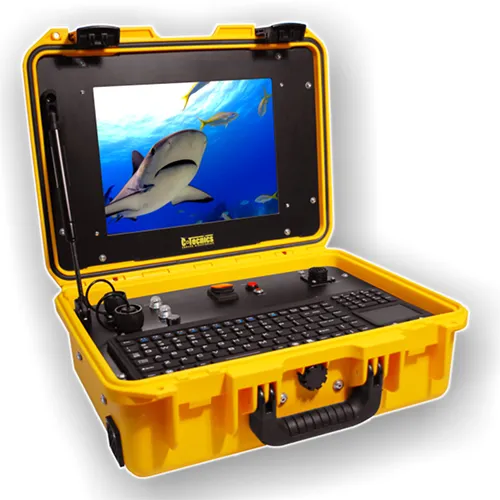

The C-Vision Solo is a superbly engineered video system for both inshore and offshore diving operations. The system allows video monitoring and recording in one easy to operate unit. The core of the C-Vision Solo system is the portable surface control unit, which incorporates video and variable light controls for a diver’s camera and light operated through a waterproof keyboard built into a rugged case. The C-Vision Solo is equipped with a 12.1" daytime viewing screen which offers excellent images of underwater operations. Advanced controls include video overlay and positioning, data outputs (LAN, Audio In, USB) and volume controls.

C-Tecnics Dive Station software is a uniquely developed software package designed with diving operations and video compression in mind, run in conjunction with Microsoft Windows 10. Text overlay is adjustable to meet your needs and includes diver’s name, locations and time stamps. File compression is adjustable which will allow between 150 hours to 3000 hours of video recording onto the internal 500GB hard drive.

Specifications:

  • Operates Underwater Camera & Light
  • Full Screen Viewing of Camera Images
  • Screen Overlay of Name, Location & Dive Timer
  • 150+hoursVideoRecording
  • Portable, Rugged & Weighing only 9KG
  • Anti Glare & High Brightness Screen
  • Harsh Environment Design
  • USB, LAN outputs (VGA optional)
  • External audio device input
  • Mains powered, 96-264 VDC
  • Variable light control
  • 150+hoursrecording
  • 500GBHarddrive (SSD optional)
  • SCUdimensions410 L x 320 W x 170 D
  • Screen12.1”
  • Windows10 operating system
  • C-Tecnics Dive Station software
  • Video data overlay : location, time/date, depth optional

Surface Control Unit

The core of the C-Vision Solo system is the portable surface control unit, which incorporates video and variable light controls for a diver’s camera and light operated through a waterproof key board built in to a rugged case.

The C-Vision comes complete with a 12.1” day time viewing screen which offers excellent images of underwater operations. Advanced controls include video overlay and positioning, data outputs (LAN, Audio In, USB) and volume controls.

Software

The C-Vision Solo software is a uniquely developed software package designed with diving operations and video compression in mind, run in conjunction with Microsoft Windows10.

Text overlay is adjustable to meet your needs and includes diver’s name, locations and time stamps.

File compression is adjustable which will allow between 150 hours to 3000 hours of video recording on to the internal 500GBharddrive.

Video System Cable

The C-Vision Solo SCU and cable remove the complication of clustered wiring associated with recording diving operations. The C-Vision cable contains all functions including video, lamp power and control.
