C-Tecnics

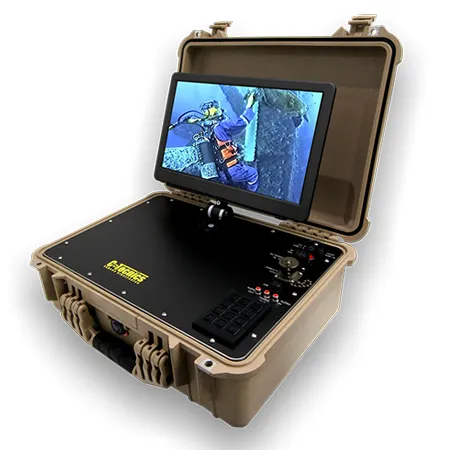

E-Vision

E-Vision offers diver video recording and playback from the built in 500GB hard disk drive, LED lamp dimming control and an external audio-in function to allow diver communications to be overlapped and recorded with video files. The 15'’ integrated foldable LCD monitor provides a clear, anti-glare display during live video and playback, and when used with C-Tecnics CT3015E Camera and CT4006 LED Light provides an exceptionally high quality picture. Connect up to 300 metres of C-Tecnics camera and light umbilical. The rugged Peli Case housing ensures the E-Vision is suitable for the harshest conditions on any dive site.

The E-Vision is also available in rack mount format (see E-Vision R) and can be configured for twisted pair type video transmission cameras (optional).

 Specifications:

Surface Control Unit:

• Single Video Channel
• Power Input 96-264 VAC
• Date/Time/Free Text overlay
• USB keyboard for data input

(keyboard not included)

• 500GB HDD DVR recorder
• Built in 15” an-glare screen
• Audio in function
• Camera control
• Lamp dimming control
• PAL/NTSC format
• MP4 Files
• 12 key control pad
• IP65 rated
• WiFi streaming

Dimensions:

• Length (mm): 524
• Width (mm): 428
• Depth (mm): 206

Weight: 8 kgs

Case color: Desert Tan
