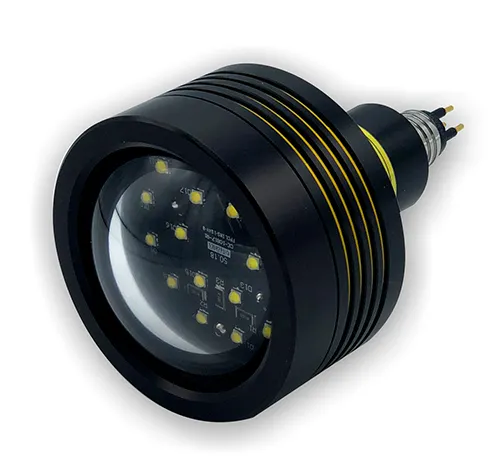

CT4011 LED Light with Serial Control

Introducing the serial control model CT4011 Underwater LED Light. The control electronics allow control options of dimming the LED lamps via RS232, RS485 or a 0-5V control voltage. In serial control, RS232 or RS485, a preset list of commands allows the user to set individual addresses for each light, set intensity for each light and allows the use of multidrop in RS485 to control up to 16 LED Lights. Menu control is via a terminal emulator, that can be used to switch between RS232 and RS485, change baud rate, toggle on/off termination resistor and re-set the device address. With voltage control, the 0 to 5V reference voltage allows the lamp to be dimmed on a scale of 0 to 100% intensity within the range of 0.25V to 4.75V.

Physical specifications:

• Housing Materials - Hard Anodized 6082-T6 Aluminium, Stainless Steel, Titanium

• Length - 97.5mm (ex connector)

• Diameter - 90mm

• Window/Lens - Acrylic domed (frosted optional)

• Weight in air - 760g

• Weight in water - 340g

• Operating Depth - Anodised Aluminium - 2000m, Stainless Steel - 3000m, Titanium - 4000m

• Standard Connector - MCBH5M (others available)

Technical specifications:

• Typical Beam Angle - 125°

• Voltage - 24V DC

• Power Requirement - 1A

• Power Consumption - 19 watts @ 1A

• Typical Luminous Flux - 2200 lumens @ 1A

• Typical Colour Temp - 5500 ± 500 °K

• LED Colour - Cool White

• Operating Life - 50,000 hours
