C-Vision

C-Vision

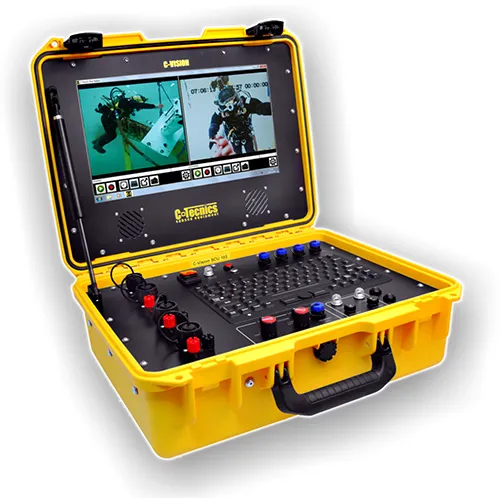

The C-Vision is a superbly engineered, dual function video and communications systems for both inshore and offshore diving operations. The system allows both video and voice communication to be easily monitored and recorded in one easy to operate unit.

The portable surface control unit incorporates video and variable light controls for 2 divers and communications for 3 divers and a tender, all operated through a waterproof keyboard. The C-Vision is equipped with a 15.6” daytime viewing screen which offers excellent images of underwater operations. Advanced controls include video overlay and positioning, date outputs (LAN, AUX, USB & EXT AV OUT) and volume controls, all housed in a robust transport case. The components are carefully selected to minimise heat build-up, which allows the C-Vision SCU to operate in a range of temperatures and humid climates.

The C-Vision is available in both 2-wire or 4-wire (round robin) communications versions.

Specifications:

  • Operates 2 sets of Underwater Cameras & Lights
  • Full or split screen viewing of camera images
  • Adjustable text screen over-lay
  • From 150 hours video & communication recording
  • 3 diver & tender communications
  • Portable & rugged, weighing only 12.8KG
  • An-glare and high brightness screen
  • Harsh environment design

Software

The C-Vision software is a uniquely developed software package designed with diving operations and video compression in mind. The software is run in conjunction with Microsoft Windows 10 and is capable of full or split screen viewing.

Text overlay is adjustable to meet your need and includes diver name, location and me stamps, while GPS and depth are available as optional add-ons.

File compression is adjustable which allows between 150 hours to 3000 hours of video and communication recording onto the internal 500GB Solid State hard drive.

Communication System

The communications in the C-Vision system are based on the same electronics found in the C-Phone, with opt isolation ensuring no interference and degradation in the quality of the audio signal.

The SCU has a built in charger for communications so in the event of mains failure the communications will have back up power for up to 30 hours.

Video System Cable

The C-Vision SCU and cable remove the complication of clustered wiring associated with recording diving operations. The C-Vision cable incorporates all functions including video, communications, depth recording, lamp power and control.
