Power Generating Systems

Power Generating Systems

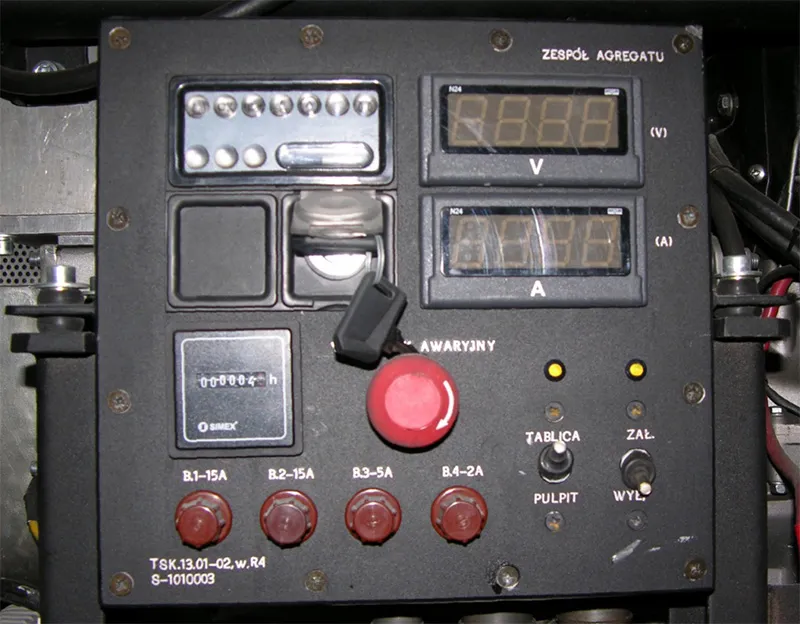

The onboard power generator is used for generating additional power in case of engine failure in critical or non-critical situations. ARMPOLE designs its power generation system for use in all types of command-staff vehicles – armoured or unarmoured – on track or wheeled chassis. The PZA.13.R4 provides an excess of 13 kW, which is activated when the engine fails. The generator supplies a DC of 300 A with a nominal voltage of 27.6 V to the onboard equipment, and powers the compressor drive of the air conditioning system of 4.0 kW.

Apart from these, the company also provides various other generators and generator systems including the mobile power generator device.

Features:



 Product  PZA.13.R4 – 13kW/24V
 Total Weight  280 kg
 Purpose  a. Alternate Vehicle Power Source
 b. Power Source for Air Conditioning
 Generator Type  E1X13SC/2 LINZ ELECTRIC
 Generator Engine  RD 210 RUGGERINI (16 kW IC Engine)
 Total Rated Power  13 kW
 Generator Drive Power  9 kW
 Compressor Drive Power  4 kW
 Supply Current  300 A
 Supply Voltage  27.6 ± 1 V
 Maximum Supply Voltage  from 22 to 30 V
 Noise  < 95 dB (7m Radius of the Vehicle)
 < 80 dB (Inside Vehicle)
