Smoke grenade launcher system

Smoke grenade launcher system

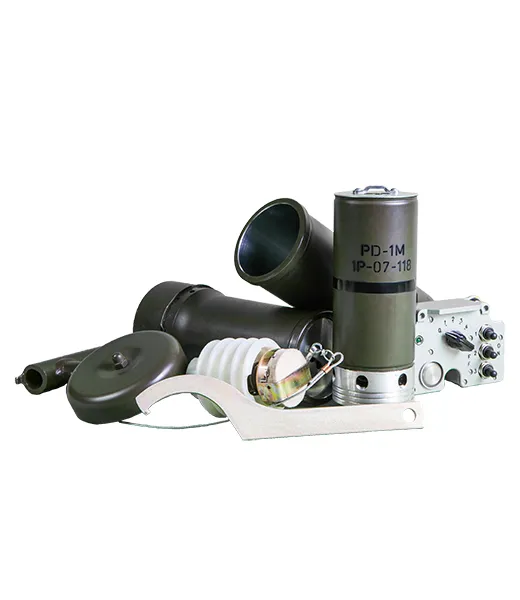

Smoke grenade launcher system is externally mounted on the host vehicle or turrets. The 81 mm launchers system allows firing on a distance up to 350 m and generation of an effective smoke screen camouflaging action on a battlefield.

The 81 mm launcher system consists of: launchers, control panel and tool kit. The set has 4 possible variants depending on the number of launchers: 4, 6, 8 or 12.  Installed inside a vehicle, control panel is used for launching smoke grenades that are preloaded into the launchers. Each launcher is mounted on a vehicle externally using three screws M12 of a diameter  of  ø  82  mm.  Launching  voltage  is  obtained  from  control  panel  on  each  launcher  separately.

Technical Specifications:


 Launcher length [mm]  285
 Internal diameter of barrel [mm]  81
 Weight of launcher [kg]  3.8
 Current strength for operation [A]  2
 Operational voltage [V]  27+2/-5
 Feed  constant current generator
