Q7 Processor

Q7 Processor

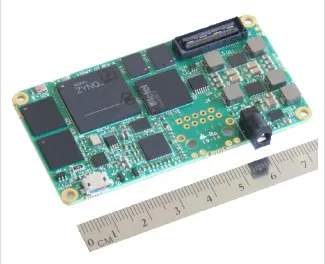

The Q7 processor card offers the following key features:

• Builds on extensive heritage from flight-proven Q-card family

• Xilinx Zynq SoC, including ARM® dual-core Cortex™-A9 MPCore processors

• Memory: 2x LPDDR2 RAM, 2x QSPI Flash (NOR), 2x 32Gbytes MicroSD

• Power: typ. 1W @ 6V to 28V

• Interfaces included: Ethernet, USB, serial, I/Os accessibe through Q-Strips

The Q7 is typically used with an application-specific daughtercard designed to mission form-factor and with appropriate connectors. Several mission designs are using two Q7s on a single daughterboard, providing further robustness and enabling ditributed computing.

Each Q7 is delivered with a Product Integration Module (PIM) which provides additional interfaces and features for ease of development.
