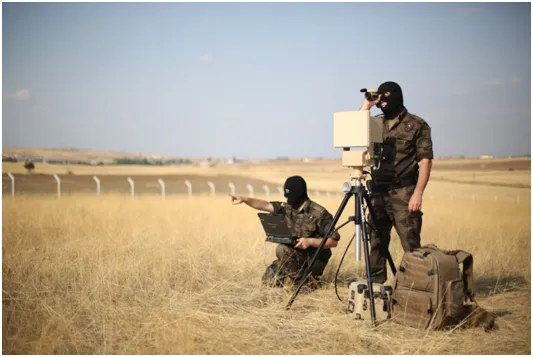

Retinar PTR Perimeter Surveillance Radar

Retinar PTR Perimeter Surveillance Radar is a high resolution advanced technology radar system with low power consumption and low output power, operating in millimeter wavelength and optimized for human detection and recognition.

Retinar PTR can be used for border surveillance and security, camp security of patrols and perimeter security of critical facilities. It can be carried and installed by a two men crew and operated by single personnel as Retinar PTR has been designed for high mobility.

The system is composed of a small form factor slim antenna-transmitter-receiver plate, and an integrated signal processing unit, which is carried by a mechanically steered pan & tilt pedestal and sit on a tripod.

The system has also a transportable battery & charger unit and an external power supply for line inputs for stationary or vehicle usage. For mobile operations 2 to 6 battery packs can be carried according to the operational duration needs.

Characteristics:


• Operating Frequency: Ka Band
• Spot and track all moving targets from long distances in large areas
• Detection range: walking person 4 km, small vehicle 8 km, large vehicle 10 km
• Human identification analysis
• Weight: <20 kg
• Range resolution: 3 m
• Built-in GPS, magnetic compass and monocular
• Environmental design: MIL-STD-810F, IP66
• Electromagnetic: MIL-STD-461E
• Slew-to-cue functionality for any type of pan-tilt camera
