Concurrent Technologies Plc.

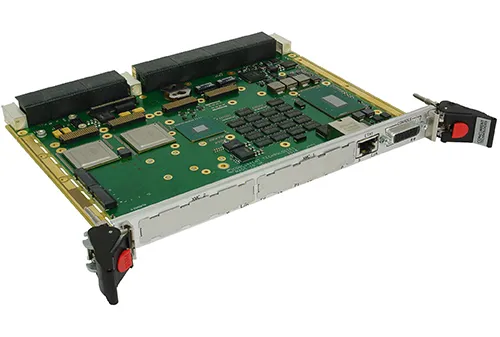

Rugged 6U VPX Processor Board

VR E7x/msd-RCx is a conduction-cooled, rugged 6U VPX™ processor board based on a 6-core Intel® Xeon® processor E-2176M that is designed for applications that need high clock speeds across a maximum of 12-threads. It is available with two XMC sites and includes direct attached SATA and PCI Express® based storage options.  The ruggedized variant is designed for use in a range of C4ISR applications for the defense and transportation markets and is offered with optional security and built-in-test enhancements.

Key Features of rugged 6U VPX processor board

• High performance 6-core processor
• Up to 32Gbytes DRAM with built in error correction for reliable operation
• Dual XMC sites for local expansion
• Direct attached storage options: on-board Flash Drive Module & M.2 site for high speed storage
• Optional Built-In-Test and enhanced security packagesnAir-cooled options are also available
