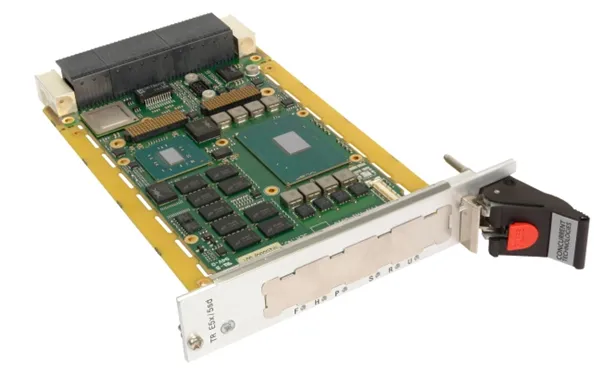

3U VPX-Processor Board

TR E5x/msd - Intel ® Xeon ® Processor E3-1500 v5 Family Board

TR E5x/msd is a 3U VPX™ board based on the Intel ® Xeon ® processor E3-1500 v5 family that provides enhanced processing performance within the same Size, Weight and Power (SWaP) envelope compared to the successful TR B1x/msd board.

An optional front panel module with DisplayPort, Ethernet, USB and serial connections can be supplied for air-cooled solutions, alternatively the board can be provided with an XMC expansion slot.

TR E5x/msd supports a wide range of backplane profiles based on a PCI Express ® (PCIe ®) data plane fabric and optional PCIe expansion plane for flexible multi-board configurations. It is compliant with the recently ratified VITA 46.11 system management specification and is particularly suited for command, control, communicate and compute applications.

Features


• 3U VPX Form Factor
• Up to 4-core CPU for mobile workstation processor performance
• Up to 72 GPU execution engines for accelerated co-processing capabilities
• XMC module site or optional front panel module for local I/O expansion
• Local solid state disk module site for rugged storage
• Compatible with popular OpenVPX™ module
