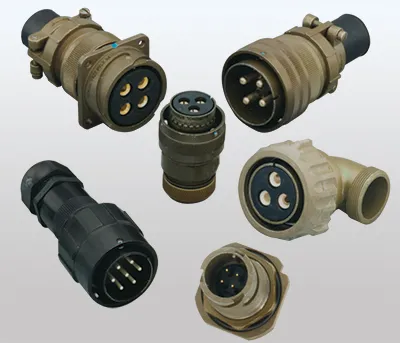

GT 5015 Reverse Bayonet Connectors

GT 5015 Reverse Bayonet Connectors

GT 5015 Reverse Bayonet Connectors

Designed originally for use by the military, the heavy-duty GT 5015 connector has become widely used in aerospace, ground support, and shipboard applications. GT-group-2003

FEATURES AND BENEFITS:

Amphenol GT reverse bayonet coupling connectors with MIL-DLT-5015 insert patterns features:

Quick positive coupling

Audible, tactile, and visual indication of full coupling

Waterproof - IP67 rated

Inserts available in Neoprene and Viton materials

Low smoke/flame retardant inserts also available

Operating temperature range:

  • With Neoprene inserts: -55° to +125°C

  • With Viton inserts: -50° to +200°C

  • With low smoke/flame retardant inserts: -55° to +125°C

Available in both crimp and solder terminations

Numerous finishes available

Zinc alloy plating (cadmium free) available

Available with over-molded rubber coupling for added damage protection and increased gripping surface

Up to 50% more ampacity with the use of RADSOK® technology
