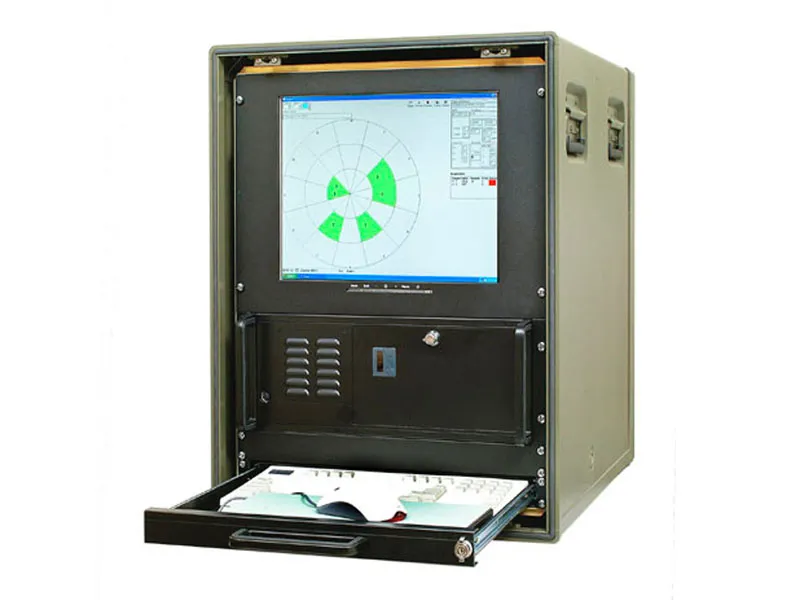

Scoring station Marque 19

Ground based Scoring Station

The Marque scoring station is a computerized scoring station for collection, calculation and   presentation of real time firing results from up to six targets simultaneously. The Marque Windows 7 based software gives the user an excellent tool for quick and easy  operation, and for setting up parameters for  the most accurate results. Parameters used for an accurate calculation are the target mission profile and ballistic and calibration data for the selected caliber.

The Marque scoring station presents the salvo result graphically in three zones and up to 12 sectors together with mean miss distance, salvo center, and number of rounds. As a complement to the graphical presentation of the salvo, the salvo result can be given in tabular form, i.e. all scored rounds are listed each with miss distance, sector and relative time. The presentations done on the color screen can also be printed in full detail on a printer. All salvos are stored on an internal hard disk in a database.

The result from a specific firing situation can be recalculated with parameters received later to get a more accurate firing result. The database gives a unique possibility with many search criteria. These can as an example be; target  no., name of gunner, name of firing unit,  run no., caliber, start date, end date, type of exercise etc. This feature gives the possibility to see statistical improvements or degradation in firing results over time.

The Marque scoring station is operated from the mouse and keyboard. All electrical connectors are located and well protected in the rear connector recess. The Marque scoring station can for example be connected to multi muzzle microphones, remote displays and a remote monitor. All of Air Target´s miss distance indicators can be used, including the latest universal model which allows firings from all coming directions.
