Aligner 224 Optical Tracking Evaluation System (dynamic alignment system)

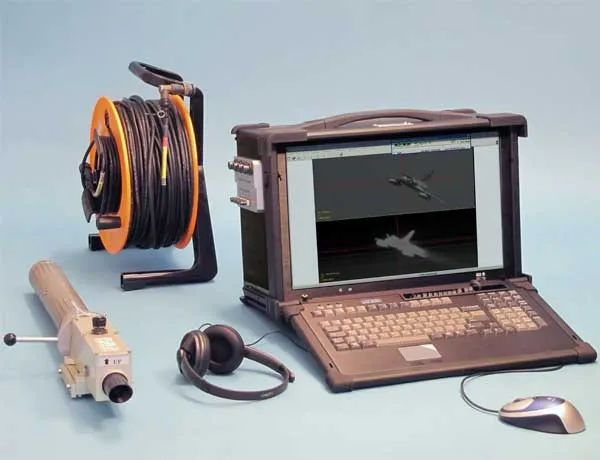

Aligner 224 Optical Tracking Evaluation System offers a most cost-effective and operationally advantageous solution for dynamic alignment system resulting in the reduction of time and cost for sea trials to a minimum. Aligner 224 Optical Tracking Evaluation System displays video from gun cameras and the camera of the fire control director side by side in separate windows on the computer screen. Lat, long and UTC time from a GPS receiver can be displayed as well. The video sequences along with the operator's verbal comments can be stored on disk in real-time and replayed later for detailed analysis.

Some of the features of the Aligner 224 Optical Tracking Evaluation System:


• Up to four video cameras and four auxiliary video sources can be connected
• Up to four video sources can be displayed and recorded concurrently
• Precision video cameras giving sharp, high-brilliance video. Rugged and splash proof.
• Extremely accurate, self-aligned gun barrel video-camera adapters offer simple and precise installation into gun barrel in only a few seconds - no adjustments necessary
• Video, voice and GPS data synchronised and recorded to disk
• Extensive built-in functions for analysis of static and dynamic errors

In summary, the Aligner 224 Optical Tracking Evaluation System has a proven record of enabling you to:


• Perform a full ship weapon tracking evaluation in two to four hours
• Later detailed analysis by replay of recorded video,voice and data
