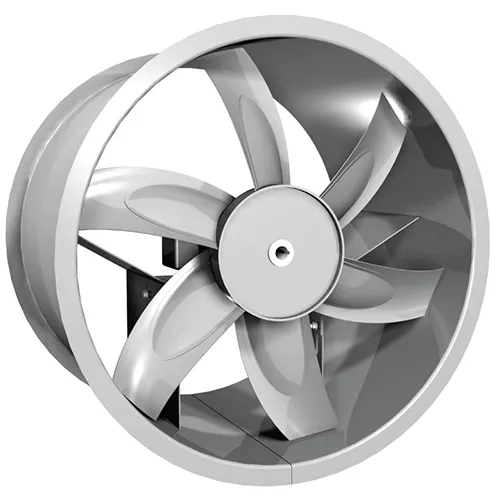

Propeller Inline: Tube Axial Fans

Designed to be easily mounted in any orientation in either ducted or non-ducted systems. All units include integral inlet and outlet flanges for direct in-line mounting. The units are produced in an ISO 9001 certified facility and are listed by Underwriters Laboratories (UL 705) and UL Listed for Canada (cUL 705).

Triton Series: Steel Propeller

• Designed using Computational Fluid Dynamics (CFD) and Finite Element Analysis (FEA) to provide optimum air flow, efficiency, quality and durability.

• Constructed of heavy gauge steel components in a fully welded assembly.

• Designed for large volumes of air at medium pressure levels.

• Statically and dynamically balanced for vibration free operation.

A Series: Cast Aluminum Airfoil Propeller

• Designed for heavy commercial or industrial applications where large volumes of air are required at low static pressures.

• Constructed of heavy gauge aluminum with 6 cast blades and a cast hub.

• Blade pitch is determined at the factory and the blades are locked into place with roll pins.

• Statically and dynamically balanced for vibration free operation.

E Series:Extruded Aluminum Airfoil Propeller

• E Series airfoil blade has a non-overloading characteristic such as is found in a centrifugal type wheel.

• Designed for use where higher static pressures are required.

• Constructed with 4 or 6 extruded aluminum airfoil blades and mounted in a cast aluminum hub.

• Blade pitch is determined at the factory and the blades are locked into place with roll pins.

• Statically and dynamically balanced for vibration free operation.
